COMET_S3460.82.00 Water level indicator fresh water tank 5 LED
• Fresh water tank level gauge
• Suitable for motorhomes and caravans
• Mounting dimensions: 62 x 29 mm
• Installation depth: 14 mm
• Dimensions: 85 x 47 x 17 mm
• Tank opening: 80 mm
• Probe length max. 370 mm (adjustable to tank height)
• Power consumption: 35 mA / 12 V
• Weight: 21 g
• 12 Volt

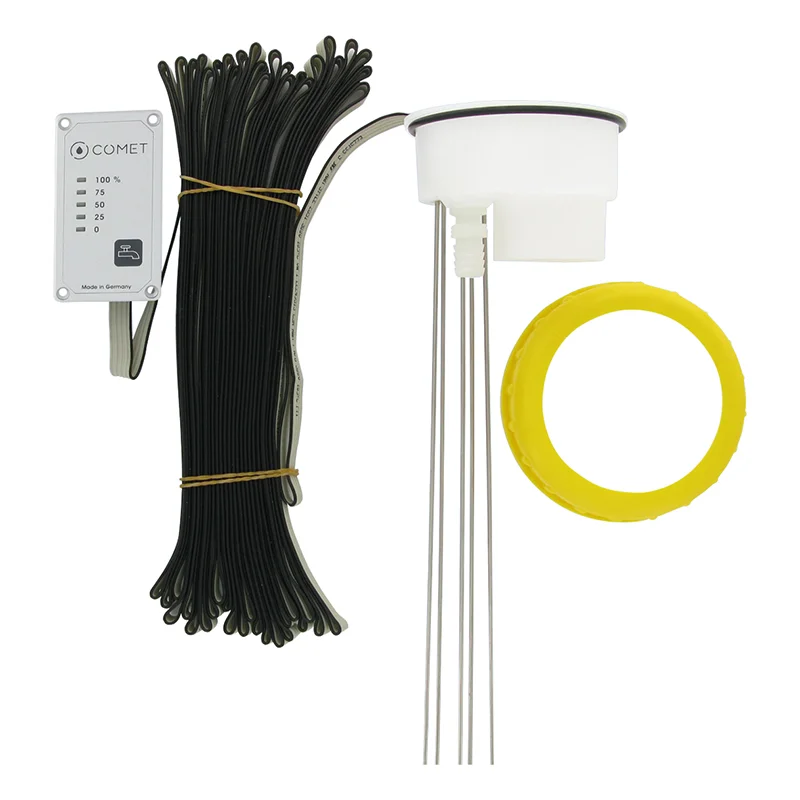

• Complete mounting set:
• Display unit
• Mounting screws
• Water level sensor
• 5-core flat cable for connecting the display and sensor
• Complete with connectors, DIN 96 retaining ring, installation and operating instructions including drilling template
Search term
COMET, S3460.82.00, Comet Fresh Water Tank Gauge, Fresh Water Tank Monitor, Motorhome Tank Gauge, Caravan Water Level Indicator, Water Tank Sensor
Article number: COMET_S3460.82.00
Barcode: 4031656004698
Weight including packaging: 520gramme
Weight (net.): 410 gram
Outer weight: 6,36 kg
Quantity per outer carton: 10
Quantity per inner carton: -
Quantity per pallet: 300
Packed article: 96x85x455 mm
Dimension inner carton: - mm
Size outer: 610x420x325 mm
CBM outer: 0.083265 m3
